Sometime, creating a script in GMSH takes too much time for complicated geometries used in CFD simulations. In this post, I will show you how I created this type of mesh in less time. We will use SpaceClaim to create geometry file (*.step), and then finalize the mesh file (.msh) by GMSH software. So, let’s tackle the classic CFD problem: “flow over cylinder” !

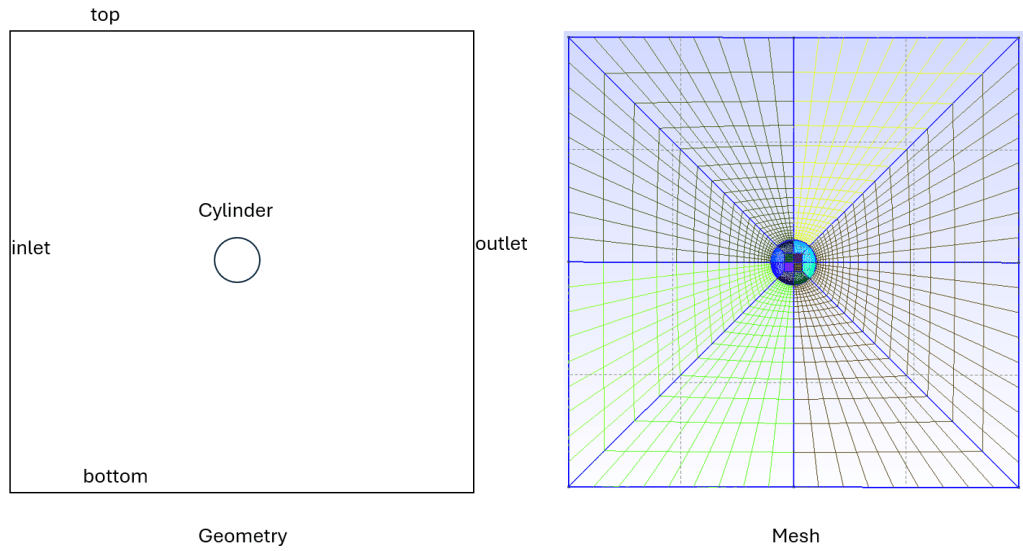

By the end of this work, you’ll be able to create a mesh file similar to this:

There are four main steps:

1. Create geometry in spaceclaim
2. Export step file (stp)
3. Import step file to Gmsh, then export Geo file.
4. Modify geo file and generate msh file from Gmsh.

Step1: Create geometry in SpaceClaim

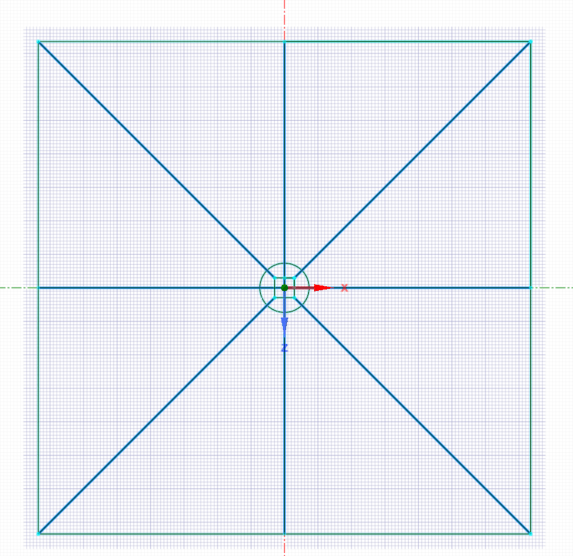

Open SpaceClaim -> new design -> sketch

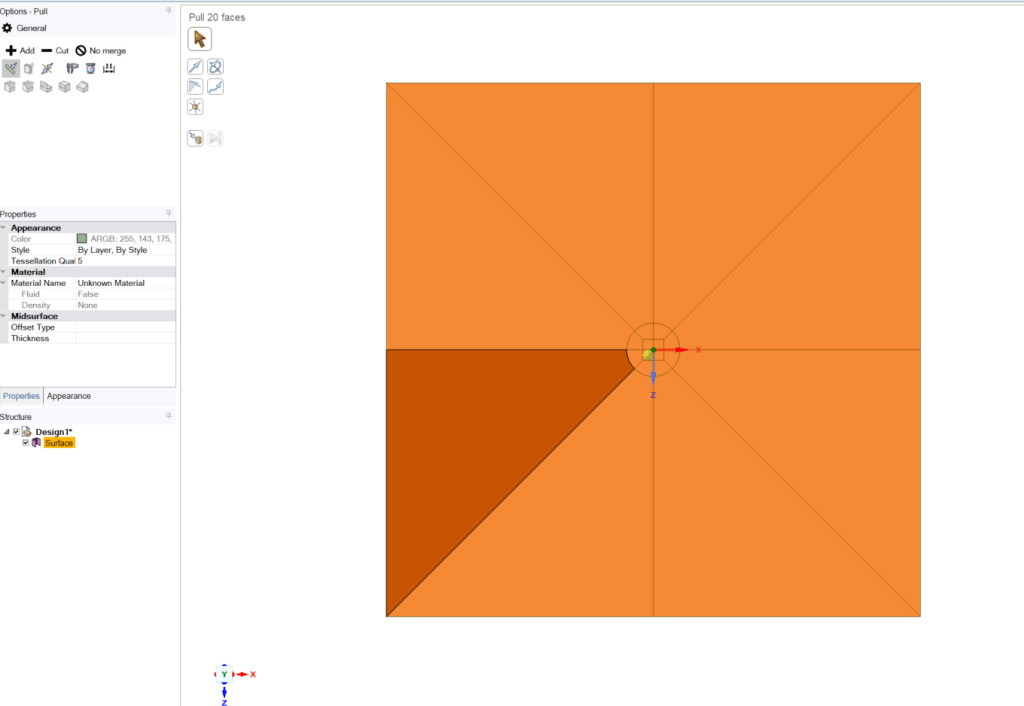

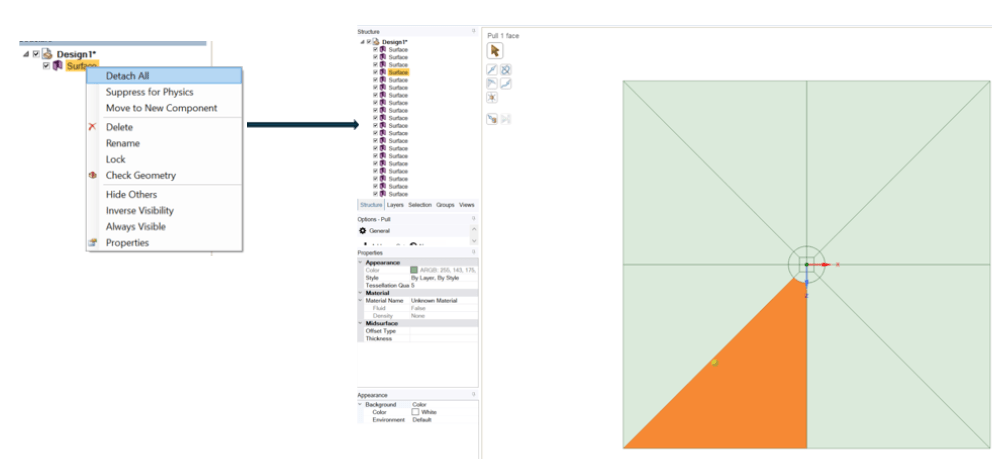

End Sketch -> Surface -> Detach All to get sub surface.

IMPORTANT NOTES: To create structure mesh each face should have 8 vertices.

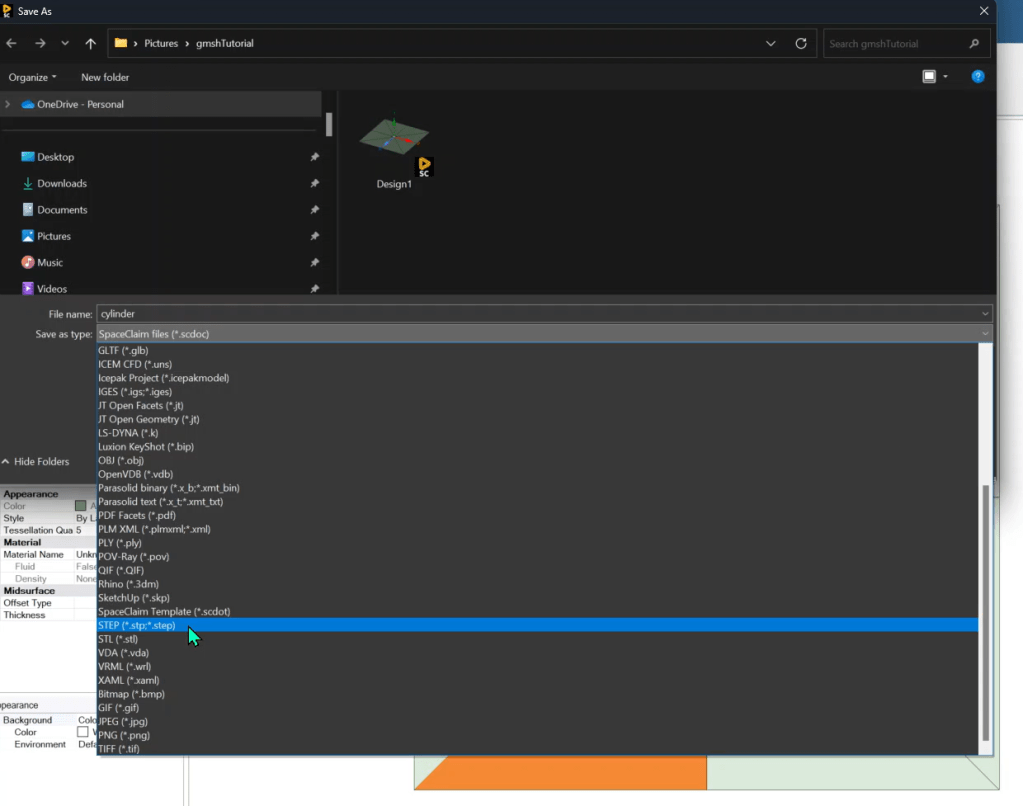

Step2: Export step file -> cylinder.stp

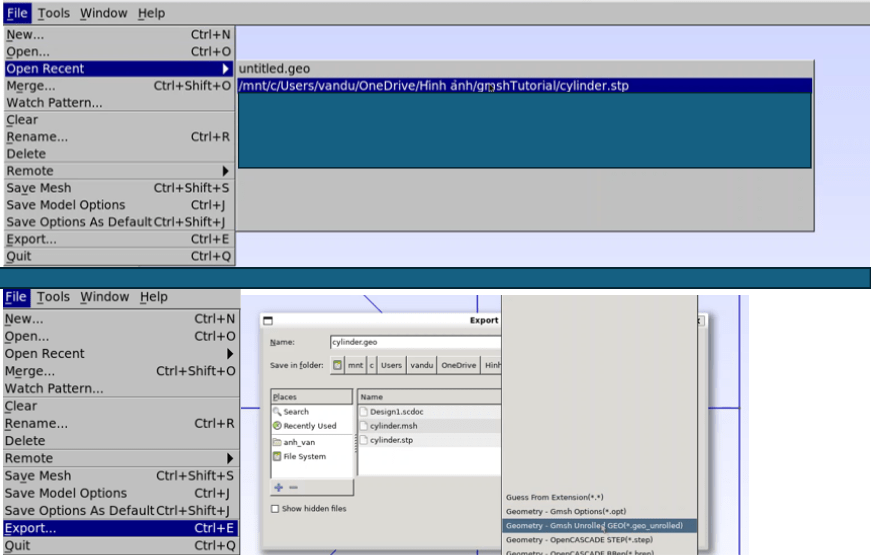

Step3: Import step file to Gmsh, then export Geo file (cylinder.geo).

Step4: Modify geo file and generate msh file from Gmsh.

• change cl__1 value to 1
• add “Coherence;” to eliminate duplicated vertices or lines
• Transfinte line
• Transfite surface
• Extrude surface
• Create boundary name
• Export to msh file

Transfinite Line {75,71, 65, 28, 26, 4, 2, 20, 18, 12, 10, 44, 42, 52, 50, 60, 58, 66, 36, 34, 24, 56, 48, 40, 32, 64, 8, 16} = 10 Using Progression 1;
//+
Transfinite Line {-19, -11, -3, 1, 51, -43, -35, 27} = 20 Using Progression 1.2;
//+
Transfinite Line {21, 13, 5, -7, -53, 45, 37, -29} = 20 Using Progression 1.2;
For i In {1:20}
	Transfinite Surface {i};
	Recombine Surface {i};
EndFor

//+
For i In {1:20}
	Extrude{0,1000,0}{
		Surface {i};
		Layers{1};
		Recombine;
	}
EndFor


//+
Physical Surface("inlet") = {250, 286};
//+
Physical Surface("outlet") = {110, 426};
//+
Physical Surface("top") = {198, 154};
//+
Physical Surface("bottom") = {330, 382};
//+
Physical Surface("topAndBottom") = {207, 163, 119, 427, 383, 339, 295, 251, 8, 6, 4, 2, 16, 14, 12, 10};
//+
Physical Surface("cylinder") = {185, 141, 97, 405, 361, 317, 273, 229, 493, 515, 471, 449, 13, 11, 15, 1, 17, 18, 20, 19, 9, 7, 3, 5};
//+
Physical Volume("fluid") = {16, 14, 10, 12, 2, 4, 6, 8};
//+
Physical Volume("mem") = {15, 13, 11, 9, 7, 5, 3, 1, 20, 17, 18, 19};

Detail of the process can be found in this link https://youtu.be/b_i7zieCfIY.

If you have any questions please lets me know in the comments!
